Portable Charger for electric cars Elvix PMAC 4952 T2-2P32 7KW 5M, EV charging station

Product detailed description

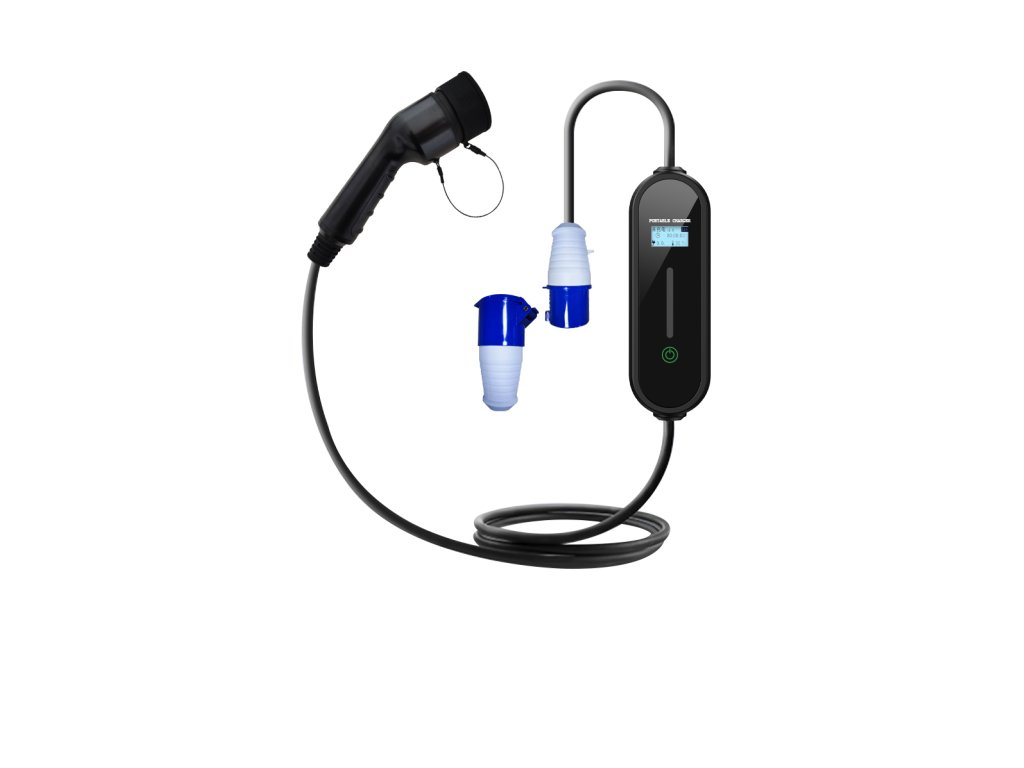

Portable Charger Elvix PMAC 4952 T2-2P32 7KW 5M

Elvix PMAC 4952 is a portable charger with a power of 7kW, designed for flexible and efficient EV charging at home or on the go. It features an adjustable current setting (8A-32A), a 5-meter cable with a Type 2 connector, and multiple modes such as Plug & Play, scheduling (Book Time), and current regulation for customized use. The IP67-rated housing ensures safety and durability, while its compact design provides easy transportation and operation.

Specifications:

Power Plug: 32A Industrial plug
Model: Plug & Play / Book time / Current Regulation

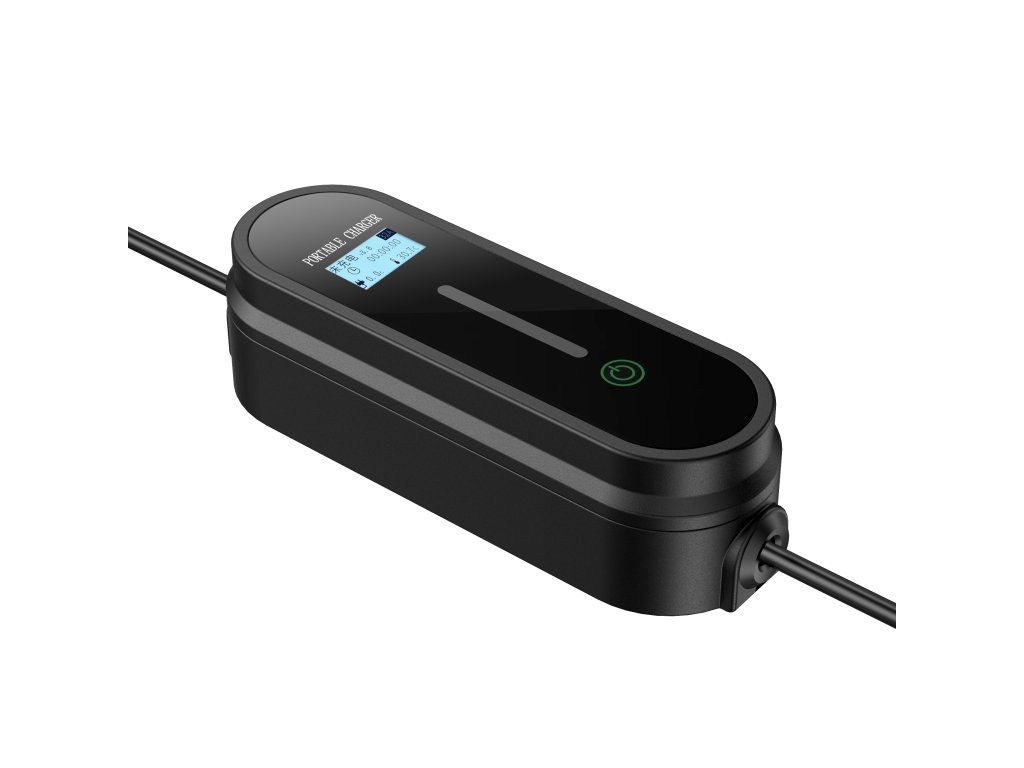

Enclosure: Charging gun-control box (PC9330)
Size: Charging Gun: 240x98x70mm / Control Box: 220x80x70mm
Cable Length: 5m (3*6MM² + 0.75MM²)
Input Voltage: AC 230V
Input Frequency: 50Hz / 60Hz
Max Power: 7kW
Output Voltage: AC 230V
Output Current: 8A-32A (adjustable)
Standby Power: 3W
Operating Temperature: -30℃ to +50℃
Work Altitude: <2000m
Protection Class: Charging Gun IP67 / Control Box IP67
Interface: 1.7-inch display screen / LED indicator light
Certification: TUV, CE, ROHS, CB

Package Includes:
1x Charger with сable
1x Manual
1x Screw set
1x Charger bag
