Portable Charger for electric cars Elvix PMAC 5000 T2-CEE 7KW 5M, EV charging station

Product detailed description

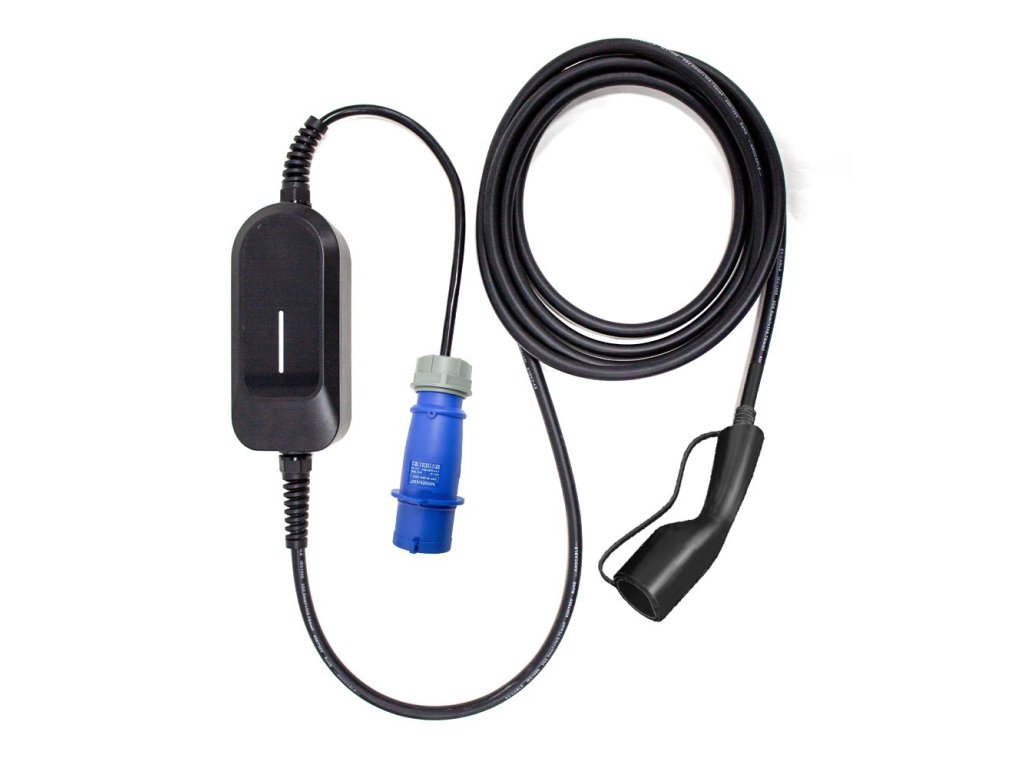

Portable Charger Elvix PMAC 5000 T2-CEE 7KW 5M

The Elvix PMAC 5000 is a robust and reliable 7kW portable charger, perfect for both indoor and outdoor electric vehicle charging. 5-meter charging cable and Type 2 connector, it is compatible with various electric vehicles. Its user-friendly design features four LED indicator lights, ensuring easy monitoring of charging status.

Specifications:

Dimensions: 195×95×55 mm
User Interface: 4 LED indicator lights
Cable Length: 5m
Weight: 2.4kg (including charging gun)
Input Voltage: 220V
Frequency: 45-65Hz
Power Rating: 7kW
Measurement Accuracy: Grade 1.0 on-board
Output Voltage: AC 220V ±20%
Output Current: 32A
Standby Power: ≤1W
Power Supply Interface: Industrial waterproof plug
Charging Interface: IEC 61851
Design Standards: SAE J1772, IEC 61851, GB/T 20234.1, GB/T 20234.2, GB/T 18487.1, NB/T 42077
Protection Features: Overvoltage, undervoltage, overload, short circuit, grounding, type A leakage, lightning/surge, reverse connection, adhesion detection, and over temperature protections
EMC Level: EMS automotive electronics standards, EMI Class B limit
Working Temperature: -40℃ to +65℃
Working Humidity: 5%-95% (no condensation)
Working Altitude: ≤4000m
Flame Retardant Properties: UL94-V0
IP Grade: ≥IP65
Cooling Mode: Natural cooling
Special Protection: Anti-UV design, anti-vehicle rolling design
MTBF: ≥100000 hours
Plug Temperature Control: Standard
Color: Black

Package Includes:
1x Charger
1x Cable
