Tinyhawk III Plus Freestyle RTF Analog

Product detailed description

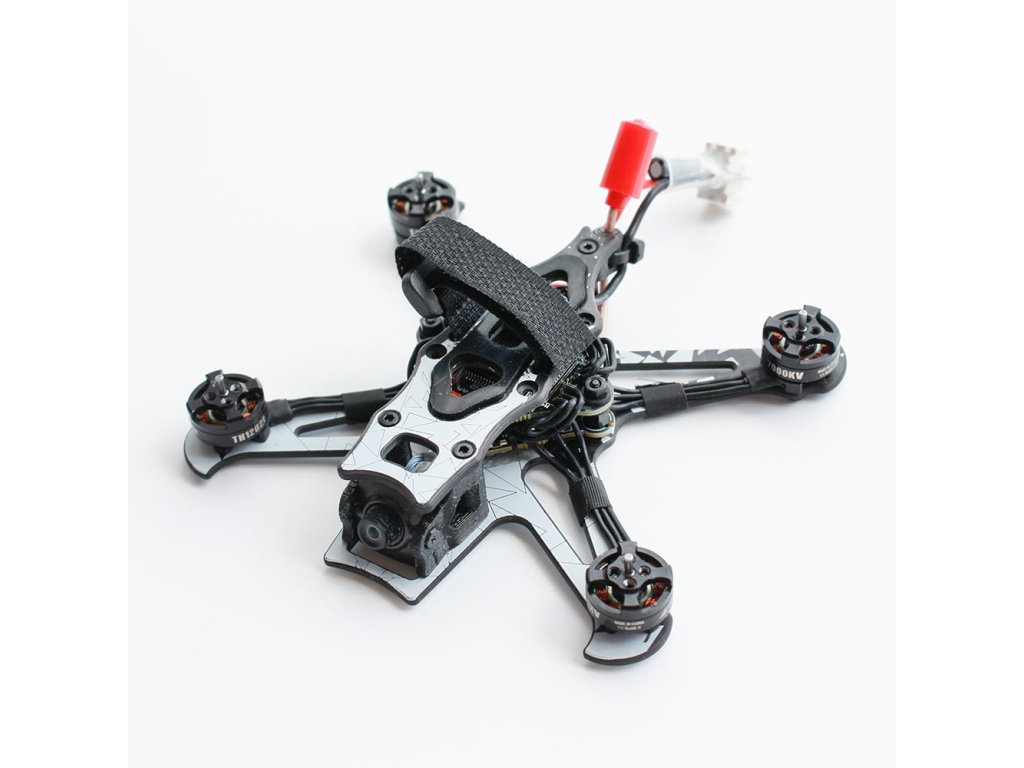

Tinyhawk III Plus Freestyle RTF Analog

The Tinyhawk III Plus Freestyle RTF Analog is a high-performance FPV racing drone designed for freestyle flying. With its durable construction and powerful motors, it provides a thrilling and reliable flying experience. Equipped with an advanced flight controller, it offers precise control and stability, making it suitable for both beginners and experienced pilots.

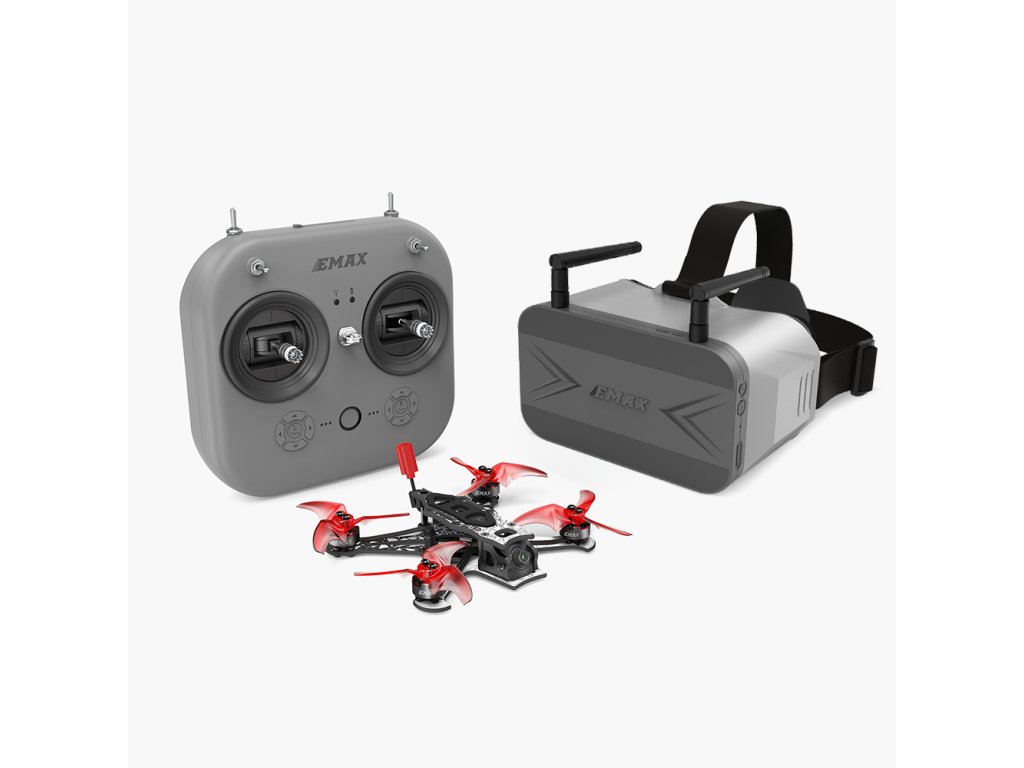

The Tinyhawk III Plus Freestyle RTF Analog version includes a drone, analog goggles, and an E8 Transmitter with ELRS.

Specifications:

Model: Tinvhawk III PLUS Freestyle
Optional Version: Analog
Optional Mode: RTF
Wheelbase: 110mm
Size: 100×104×22mm (Propeller not included)
Weight: about 62.5g (excluding battery)

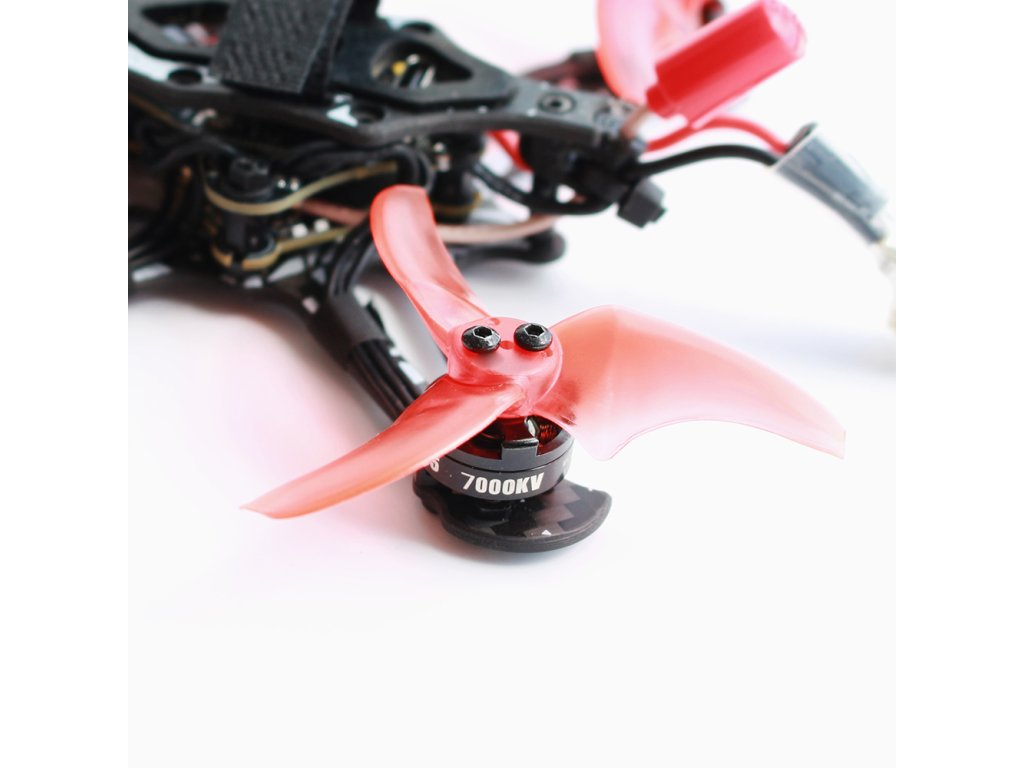

Motor: 12025 7000KV
Propeller: AVAN Rush 2.5inch three-blade propeller
Main control board: F411 (100MHz) main control, integrated 4-in-16A 8-bit ESC, onboard ELRS (2.4G) receiver (SPI communication), input voltage 1-2S

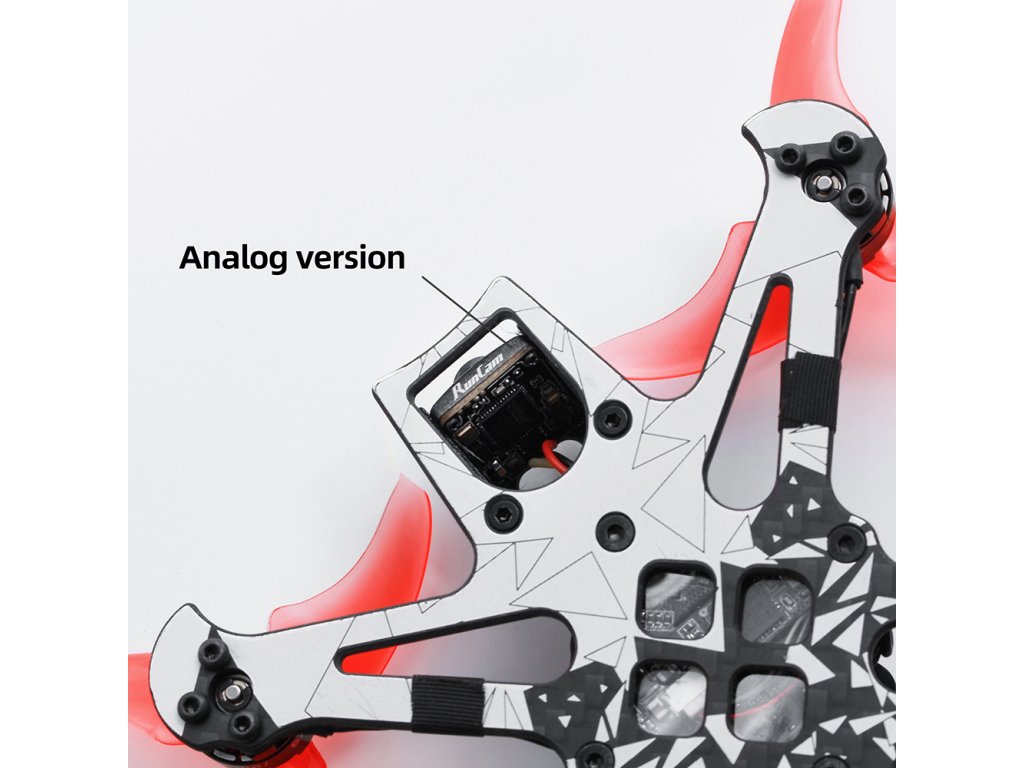

Camera: RunCam Nano 6
Image transmission: 32-bit 40CH open source image transmission
25mW/100mW/200mW
Battery: 1S HV 650mAh (With 2 1S batteries)

Remote Controller
Model: E8 Transmitter (ELRS-2.4G)
Size: 150×140×45mm
Weight: about 260g (excluding battery)
Number of channels: 8 channels
Protocol: ELRS-2.4G protocol
Working frequency: 2.4gHz frequency band (2400-2483.5MHz)
Power: 10mW/25mW/50mW/100mW
Battery: Built-in 1800mAh 18650 lithium-ion battery
Charging system: Built-in USB1A linear lithium-ion battery charging system
Working voltage: 3.7-4.2V
External interface: Type-C interface. 3.5mm audio interface (wired trainer interface)
Others: Support simulator, support joystick calibration, support left and right hand switching, support firmware update (USB method), support adjustable power, support adjustable send/return rate, support changing binding key.

FPV Goggles
Model: Transporter II
Size: L×W×H=150×100×90mm
Weight: about 398g (including headband and antenna)
Screen resolution: 480x800
Display size: 4.3 inches
Battery: Built-in one 1300mAh lithium battery
Voltage: 3.7-4.2V
Working frequency: 5.8GHz frequency band (5658-5945MHz)
Charging system: Built-in USB 1A linear lithium battery charging system
DVR: Maximum supported memory 32G TF card, file format AV size: VGA/D1/HD (three modes optional)

Package Included:
1x Tinyhawk III PLUS Freestyle Analog
1x FPV Goggles
1x E8 Remote Controller(ELRS-2.4G)
2x Battery 1S HV 650mAH
1x Charger
4x Blades(2 positive and 2 negative)
1x Accessory package
1x USB data cable
1x Screw
3x Screen adapter (component)
1x Instructions and Disclaimer
