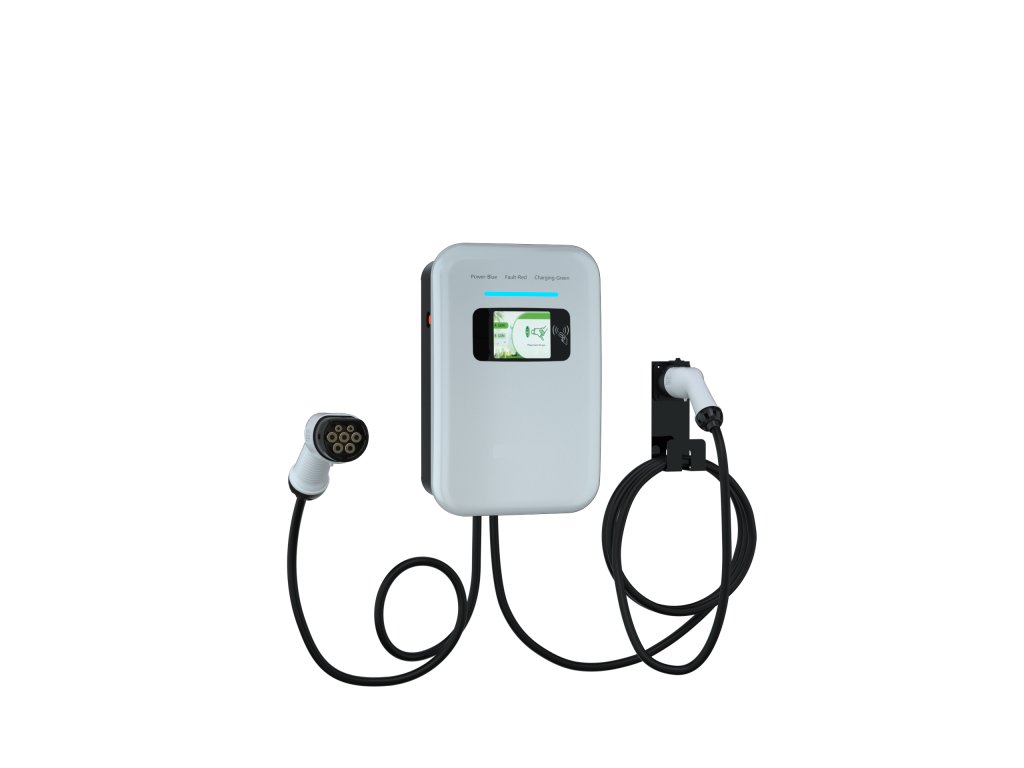

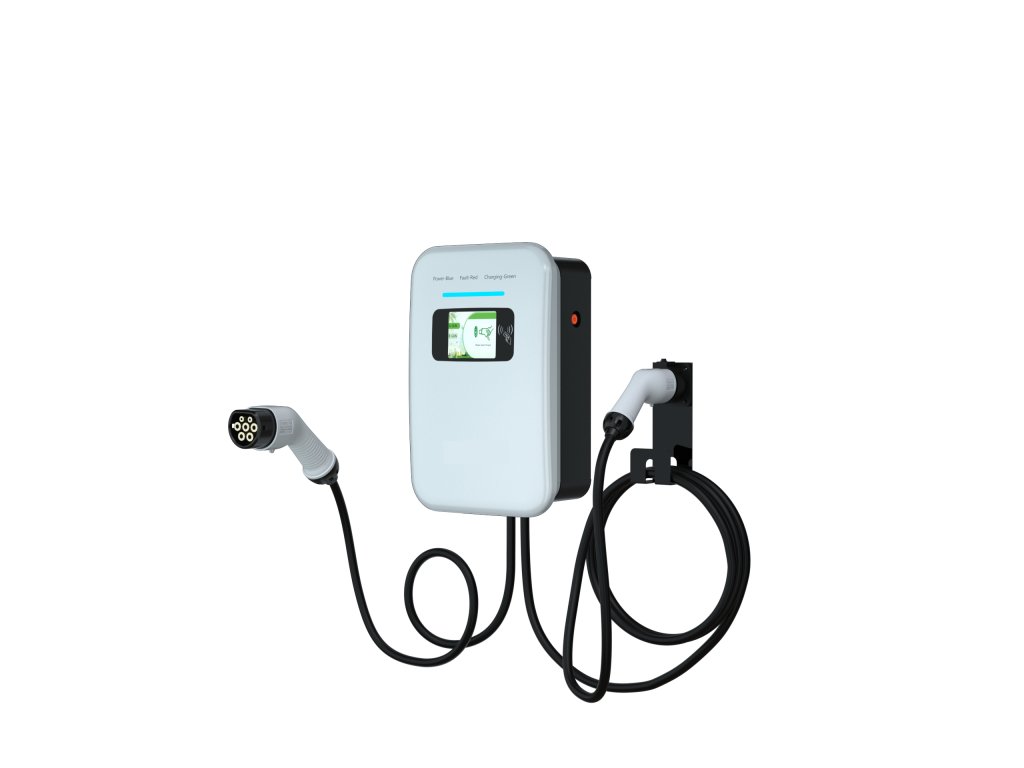

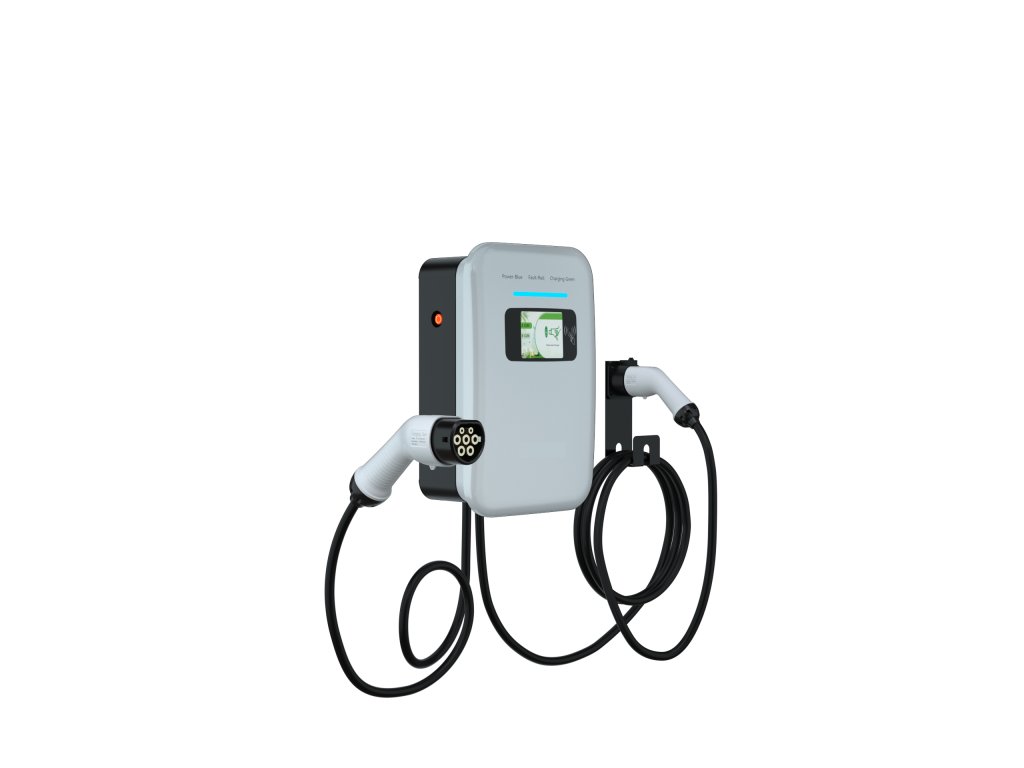

Wall Charger Elvix WBAC 4948 T2 2 cables 22KW 5M RFID

Product detailed description

Wall Charger Elvix WBAC 4948 T2 2 cables 22KW 5M RFID

The Elvix WBAC 4948 T2 is a powerful and efficient wall-mounted AC charger designed for fast charging, delivering up to 22kW per cable. It features a 4.3-inch display, two 5-meter type 2 cables, and an RFID reader for secure access. With comprehensive safety protections, including overvoltage, undervoltage, overload, short circuit, leakage, grounding, temperature, and lightning protection, it ensures reliable and safe charging for your electric vehicle in any condition..

Specifications:

Input Voltage: 380 Vac 50/60 Hz, three-phase
Power: 2 x 22KW
Cable Length: 5 m, type 2, 32A
Protection Class: IP54
Enclosure Collision Protection: IK10
Certifications: CE, FCC, RoHS, ISO
Color: White
Charger Size: 55 x 15 x 30 cm
Charger Weight: 18 kg
Package Size: 750 x 550 x 410 mm
Gross Weight: 32 kg
Warranty: 2 years

Package Includes:
1x Charger
2x Charging Cables
1x Screw set
6x RFID cards
