Wall Charger Elvix WBAC 4953 T2 1 cable 11KW 5M RFID

Product detailed description

Wall Charger Elvix WBAC 4953 T2 1 cable 11KW 5M RFID

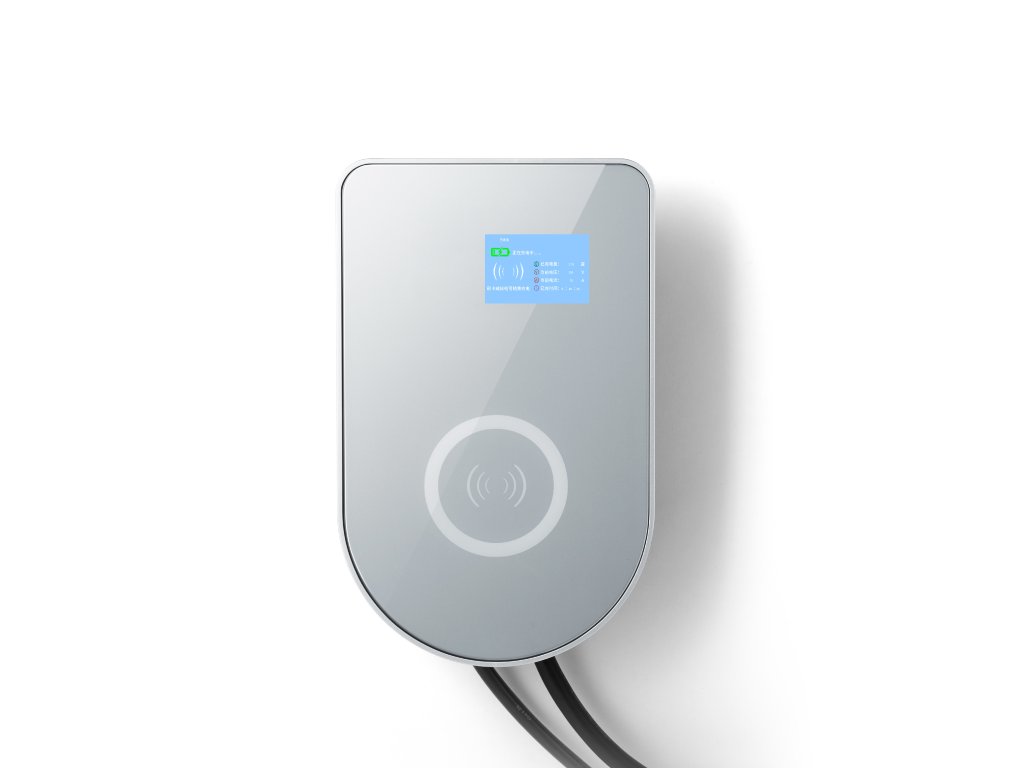

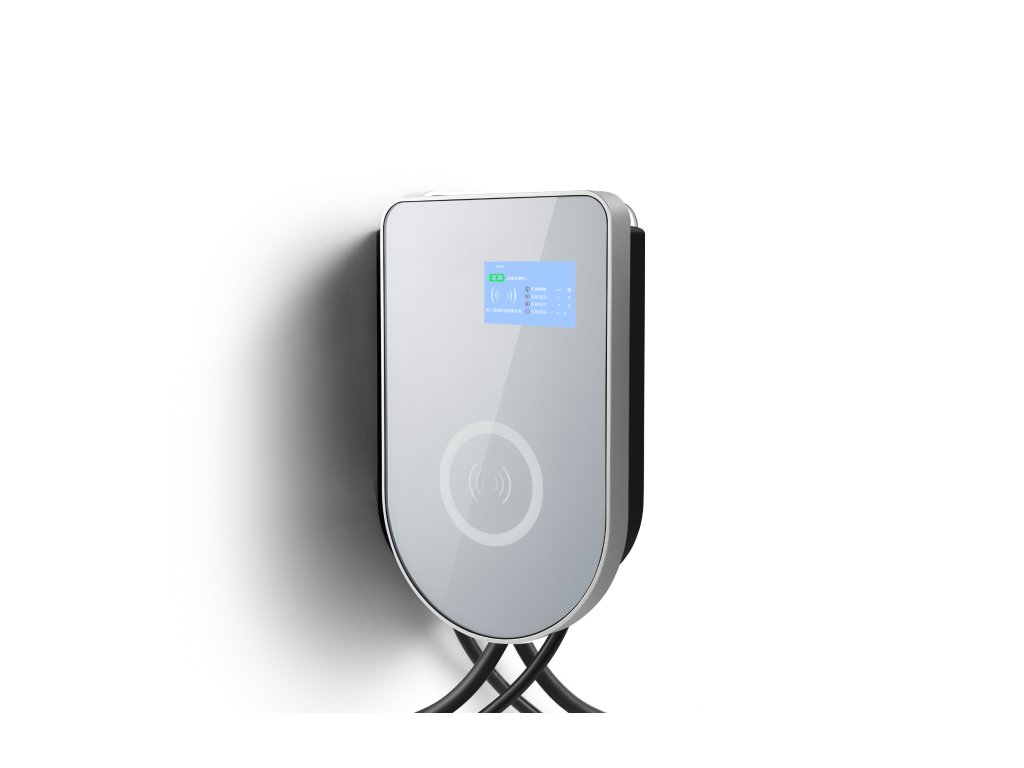

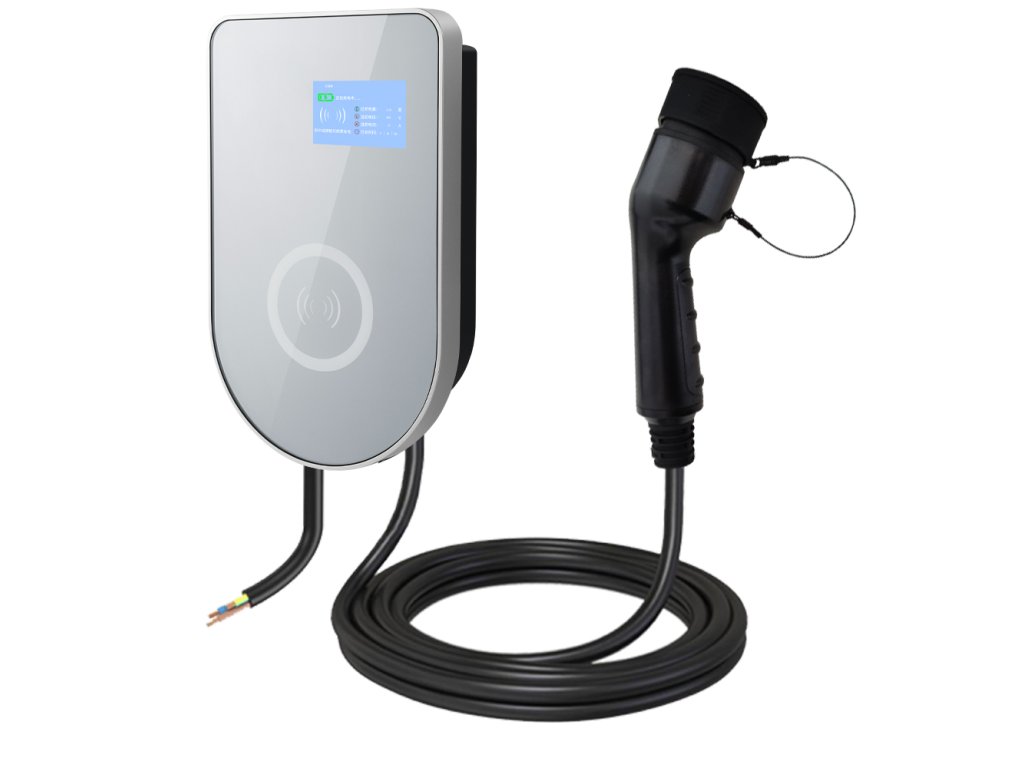

The Elvix WBAC 4953 is an advanced 11kW wall-mounted charger, designed for efficient and secure electric vehicle charging. Equipped with RFID technology, this charger offers enhanced access control for users. With its sleek design and robust features, it's suitable for both indoor and outdoor installations, ensuring reliability and safety.

Specifications:

Model: RFID to Charge
Enclosure: Charging gun with control box (PC9330/Glass style)
Charging Gun: 240x70x58 mm
Control Box: 268x228x100 mm
Installation Method: Wall-mounted or column installation
Power Direction: Input (Up) & Output (Down)
Net Weight: About 6.5 kg
Cable Size: 5 × 6 mm² + 0.75 mm²
Cable Length: 5 m
Input Voltage: AC 380V
Input Frequency: 50Hz / 60Hz
Max Power: 11 kW
Output Voltage: AC 380V
Output Current: 16A
Standby Power: 3W
Applicable Scene: Indoor or outdoor
Working Humidity: 5%-95% (non-condensing)
Working Temperature: -30℃ to +50℃
Working Altitude: <2000 m
Protection Class: Charging Gun: IP67 / Control Box: IP54
Cooling Method: Natural cooling
Standard: IEC62196-2
Flammability Rating: UL94 V0
Certificates: TUV, CE, ROHS, CB
Interface: 4.6-inch display screen
Communication: N/A
Box Dimensions: 460 mm × 300 mm × 250 mm (approx. 7 kg)
Safety Design: Over current, residual current, ground, surge, over/under voltage, frequency, and temperature protections
Color: White

Package Includes:
1x Charger
1x Cable with connector
1x Manual
1x Screw set
1x Connector holder
2x RFID cards
2x Keys
