Wall Charger Elvix WBAC 4955 T2 2 cables 22KW 5M RFID

Product detailed description

Wall Charger Elvix WBAC 4955 T2 2 cables 22KW 5M RFID

The Elvix WBAC 4955 is an advanced 22kW wall-mounted charger with two Type 2 cables designed for efficient electric vehicle charging. With Bluetooth start functionality, it offers convenient access and control. Its robust design and dual cable setup make it suitable for both indoor and outdoor applications.

Specifications:

Shell Material: Gun head PC9330 / Pile box sheet metal
Charging Gun: 230x98x58 mm
Wall Box: 340x240x120 mm

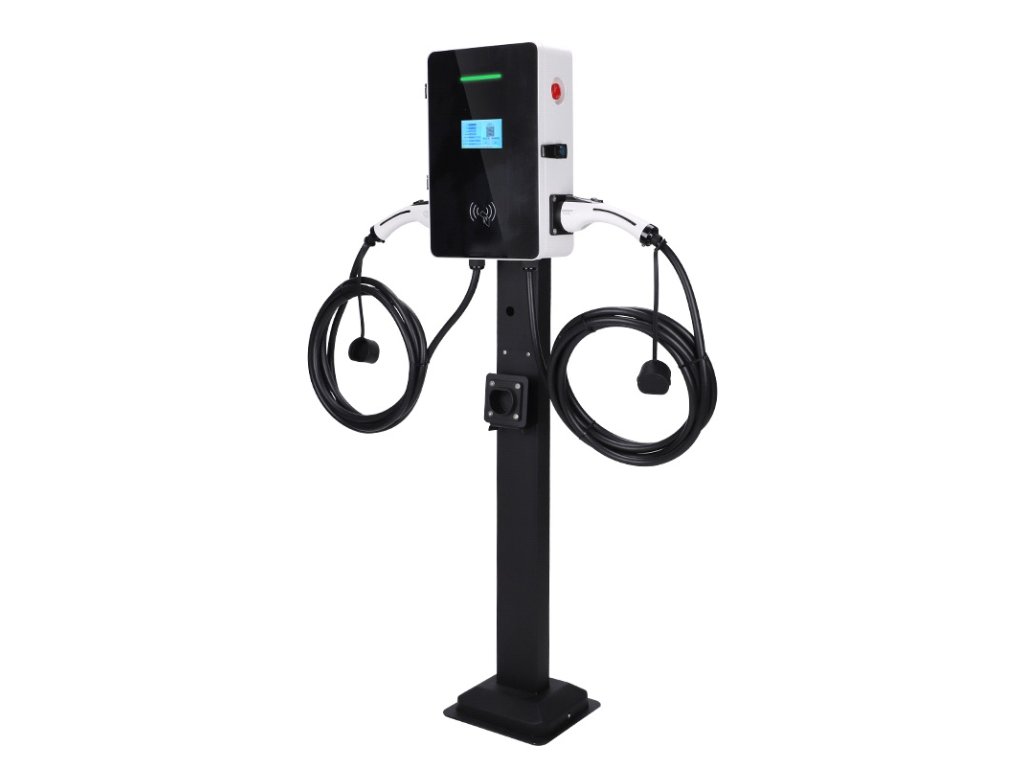

Installation Mode: Column or wall-mounted
Weight: 8.1 kg
Cable Specification: 3 × 6 mm² + 0.75 mm²
Cable Length: 5 m
Input Voltage: AC 380V
Input Frequency: 50Hz
Max Power: 22 kW
Output Voltage: AC 380V
Output Current: 16A
Standby Power: 3W
Application Scene: Indoor or outdoor
Working Humidity: 5% - 95% (non-condensing)
Operating Temperature: -30℃ to +50℃
Working Altitude: <2000 m
Protection Class: IP54
Cooling Mode: Natural cooling
Safety Standard: IEC 62196-2
Flammability Rating: UL94 V0
Certificates: TUV, CE, ROHS, CB
Interface: 4.3-inch display screen
Communication: Bluetooth start
Box Dimensions: 510x450x195 mm (approx. 9.2 kg)
Color: Black/White

Package Includes:
1x Charger
2x Cables with connectors
2x Keys
2x Keychains
1x Screw set
