Wall Charger Elvix WBAC 4956 T2 1 cable 11KW 5M

Product detailed description

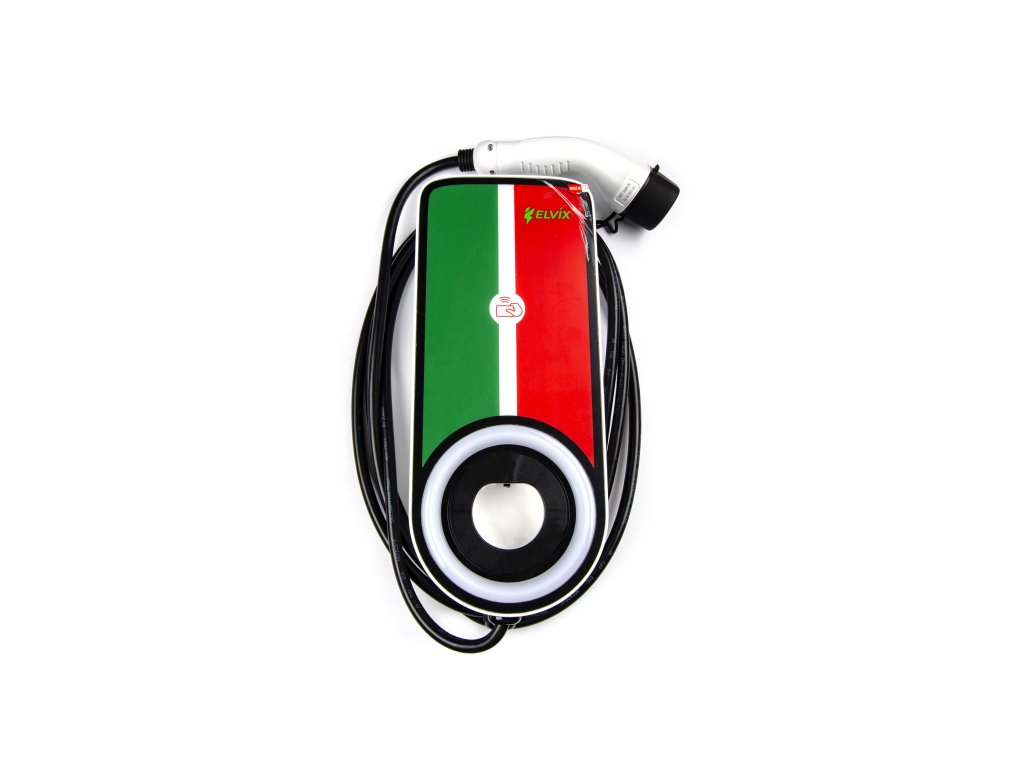

Wall Charger Elvix WBAC 4956 T2 1 cable 11KW 5M

The Elvix WBAC 4956 T2 is a compact and efficient wall-mounted AC charger designed for reliable charging with a maximum power output of 11kW. It provides a stable output with an efficiency of ≥96%. The Elvix WBAC 4956 T2 features a plug-and-play control mode, ensuring ease of use. It also is equipped with various safety protections, including overvoltage, undervoltage, overload, short circuit, and emergency stop protection.

Specifications:

Input Voltage/Current: Three-phase 16A / AC 400V ±20%
Output Voltage/Current: Three-phase 16A / AC 400V ±20%
Maximum Power: 11KW
Cable Length: 5 m
Charging Interface Type: IEC 62196-2, Type 2
Efficiency: ≥96%
Power Factor: >0.99 (Load: 50%-100%)
Protection Level: IP54
Shell Material: PC+ABS, flame retardant and fireproof, UL-94 VO
Control Mode: Plug and play
Installation Mode: Wall-mounted
Cooling Mode: Forced air cooling
Safety Features: Overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, emergency stop protection
Communication Protocol: OCPP1.6J
Ambient Temperature Range: -30 - 50℃
Overall Dimension: 180x146x421 mm
Weight: Approximately 7-8 kg
Color: Multicolor

Package Includes:
1x Charger
1x Connector holder
2x Cards
1x Manual

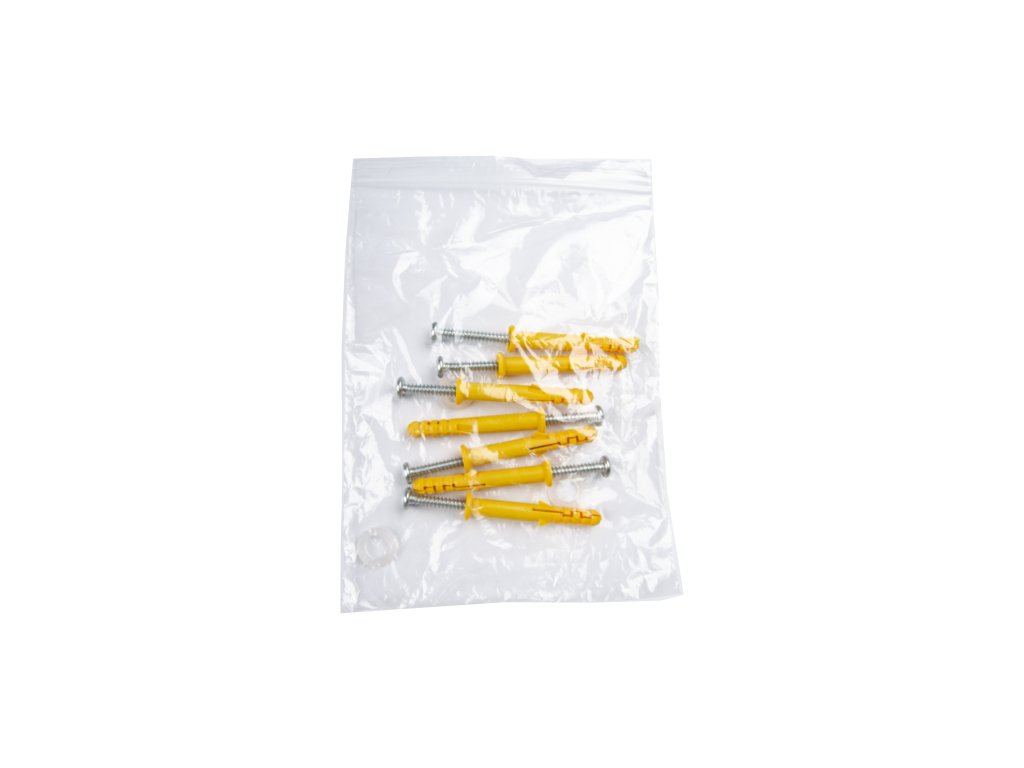

1x Screw set
