Wall Charger for electric cars Elvix WBAC 5004 T2 1 cable 22KW 5M RFID APP, EV charging station

Product detailed description

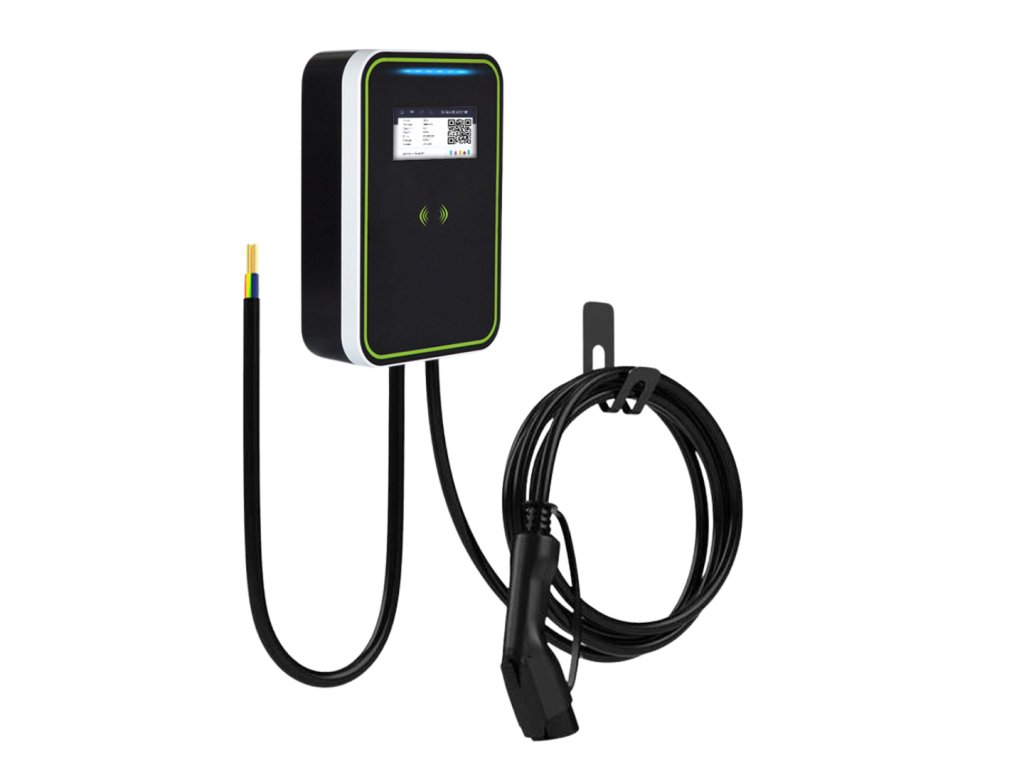

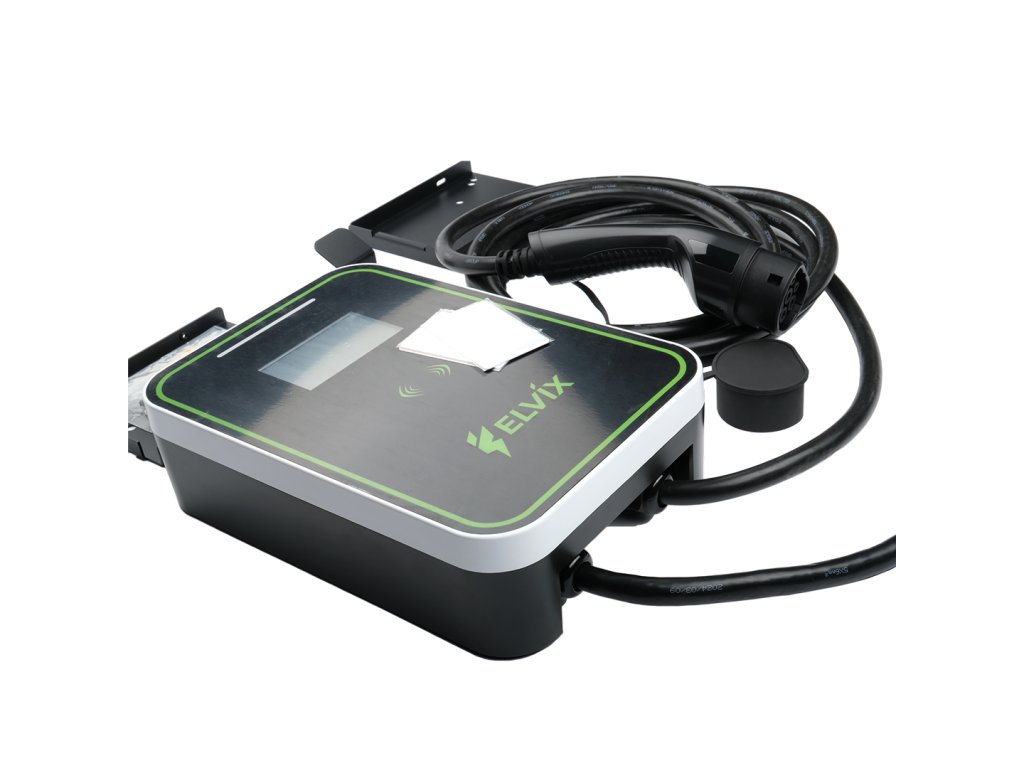

Wall Charger Elvix WBAC 5004 T2 1 cable 22KW 5M RFID APP

The Elvix WBAC 5004 is a versatile wall charger offering up to 22kW power with a 5m charging cable and Type 2 connector, ideal for efficient and convenient home charging. With APP control you can manage your charger remotely, customize charging modes, and access real-time device information. It also has an RFID reader for secure access. Its durable design, with IP55 protection, ensures reliable performance in temperatures ranging from -40°C to +65°C.

Specifications:

User Interface: 4.3-inch display with indicator light
Installation Method: Wall-mounted
Wiring Method: Bottom entry & exit
Cable Length: 5m
Input Voltage: 380V
Frequency: 45-65Hz
Power Rating: 22KW
Output Voltage: AC 380V ±20%
Output Current: 32A
Standby Power: 5W
Measurement Accuracy: OBM 1.0
Protection: Overvoltage, undervoltage, overload, short circuit, ground, temperature, lightning, and leakage (Type A 30mA + 6mA DC)
Operating Temperature: -40°C to +65°C
Humidity: 5%-95% (non-condensing)
Working Altitude: ≤3000m
IP Grade: ≥IP65
Cooling Mode: Natural cooling
Applicable Environments: Indoor/Outdoor, free of conductive dust, corrosive, and explosive gases
Special Features: UV resistance
MTBF: ≥100,000 hours
Communication: WIFI / 4G / OCPP1.6 / LAN (customizable)
RFID: 2 user cards
Leakage Protection: Type A 30mA AC + 6mA DC (three-phase)
Socket Outlet: Supports socket configuration (not SAE standard)
App Control: Available
Color: Black
Dimensions: 350×240×95mm
Weight: 8.0 kg (Including charging cable)

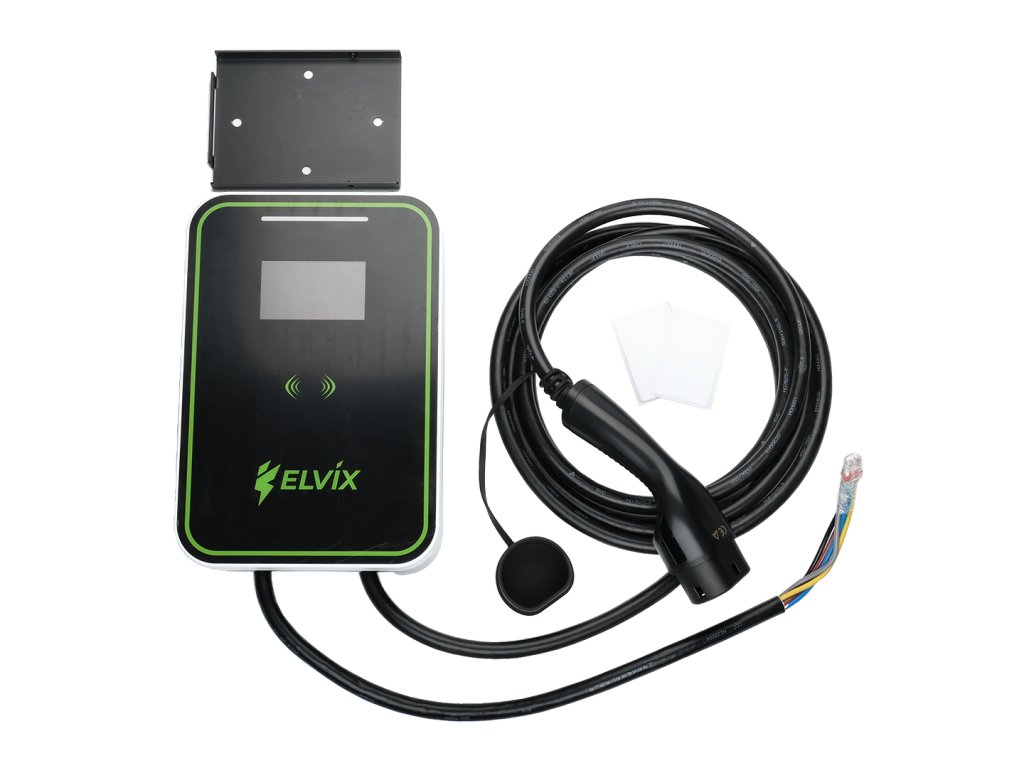

Package Includes:
1x Charger

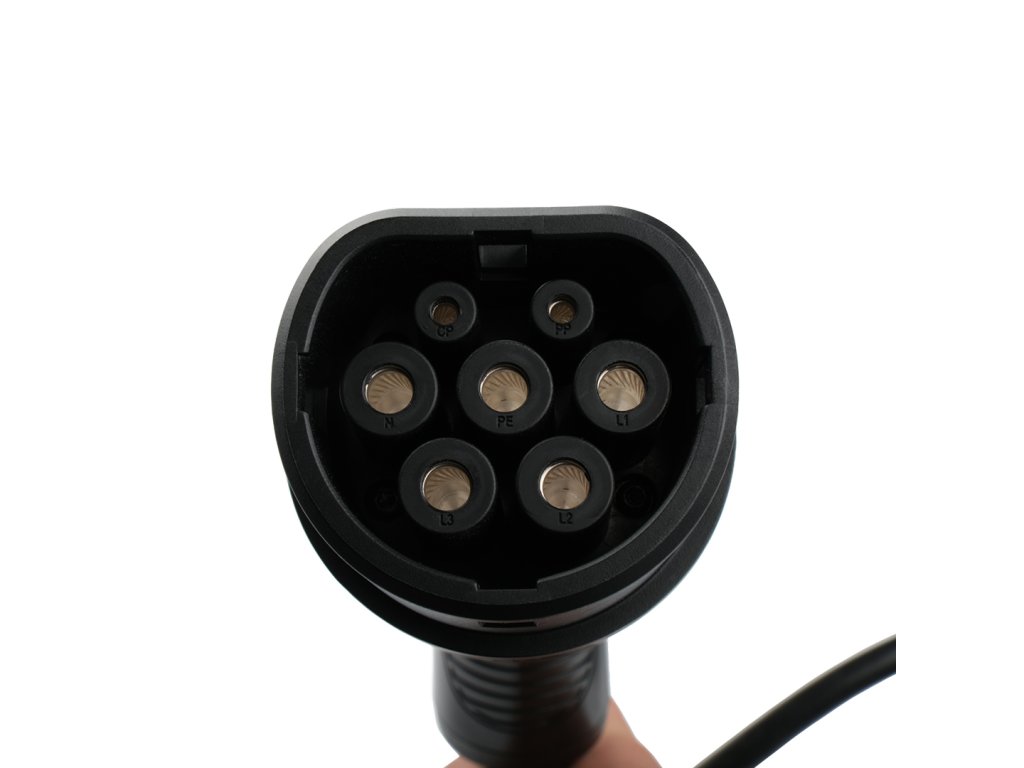

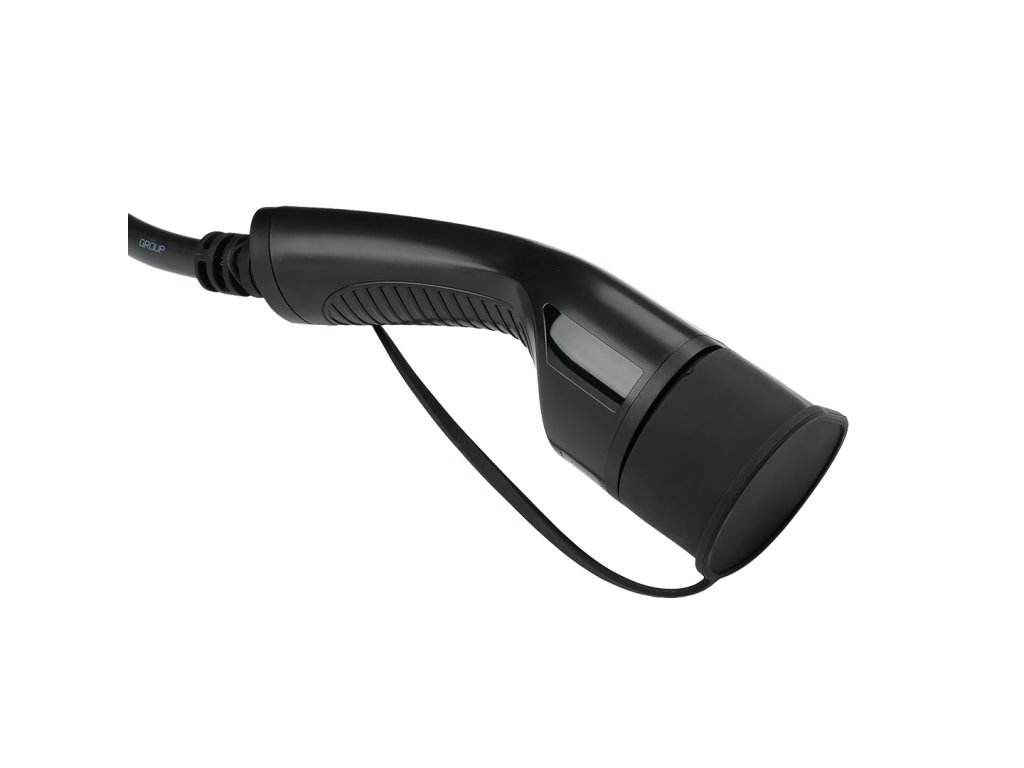

1x Type 2 Cable (5m)
2x Wall mounting back plates
1x Screw set
1x Manual
2x RFID cards
1x Hook
