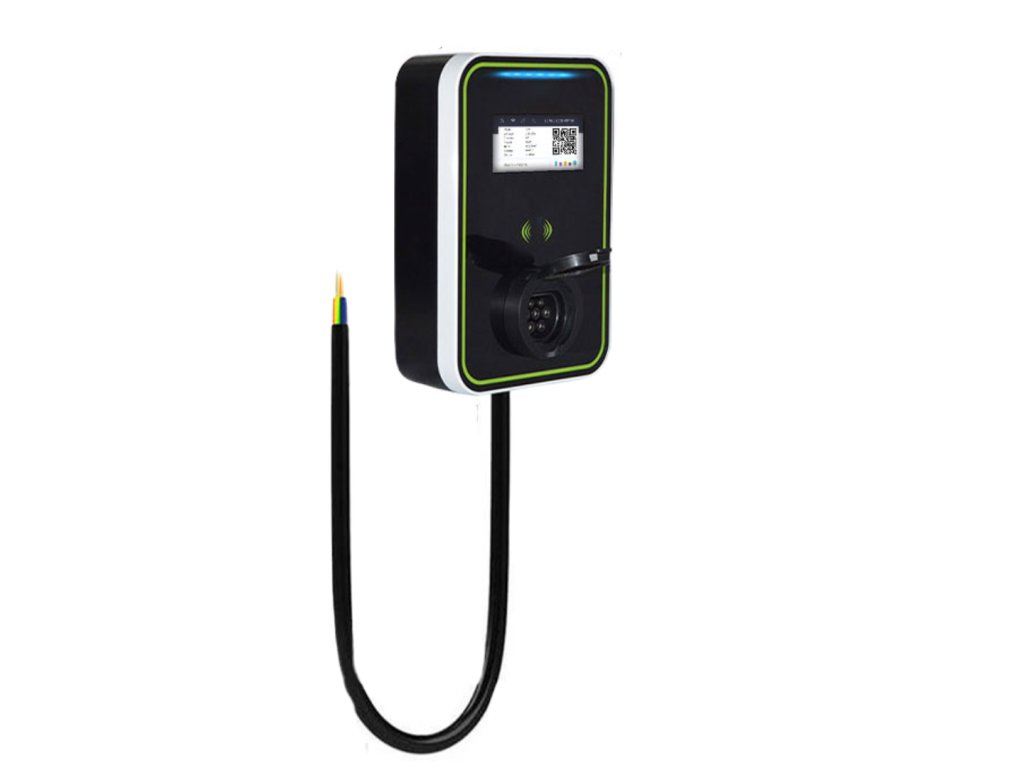

Wall Charger Elvix WBAC 5005 T2 socket 22KW RFID APP

Product detailed description

Wall Charger Elvix WBAC 5005 T2 socket 22KW RFID APP

The Elvix WBAC 5005 is a high-performance wall-mounted AC charger with a maximum output power of 22kW, designed for efficient and fast car charging. It offers an RFID reader for secure access and can be operated with APP control for current adjustment, device information display, and more. This model features multiple charging modes, real-time monitoring, and robust safety protections, ensuring a reliable and user-friendly experience.

Specifications:

Voltage: AC 380V
Current: 32Amp
Max Output Power: 22kW
Input Frequency: 50Hz ±5%
Protection Degree: IP65
Operating Temperature: -40°C to +65°C
Charging Interface Type: IEC 61851/62196
Charging modes: Plug and Play, Normal mode, Schedule
Protection Features: Overcurrent, temperature control, flame retardant, grounding, waterproof (IP65), overvoltage, short circuit, and lightning protection.
Color: Black
Dimensions: 237 x 348 x 115 mm
Weight: 3.5 kg

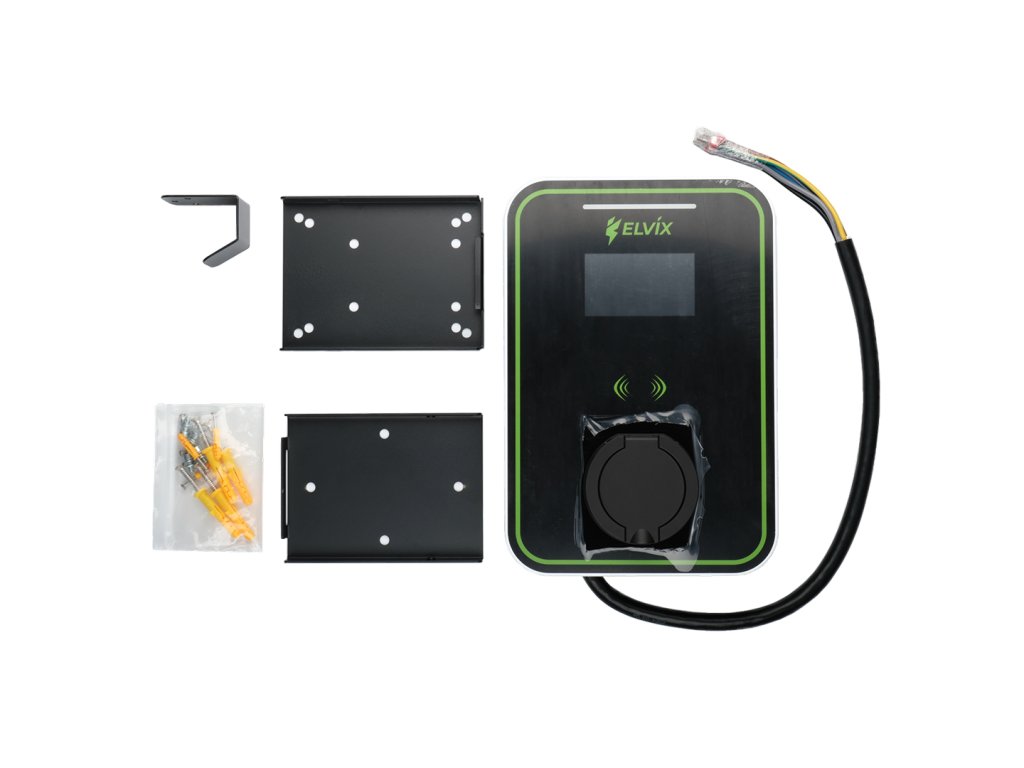

Package Includes:
1x Charger
2x Wall mounting back plates
1x Screw set
1x Manual
2x RFID cards

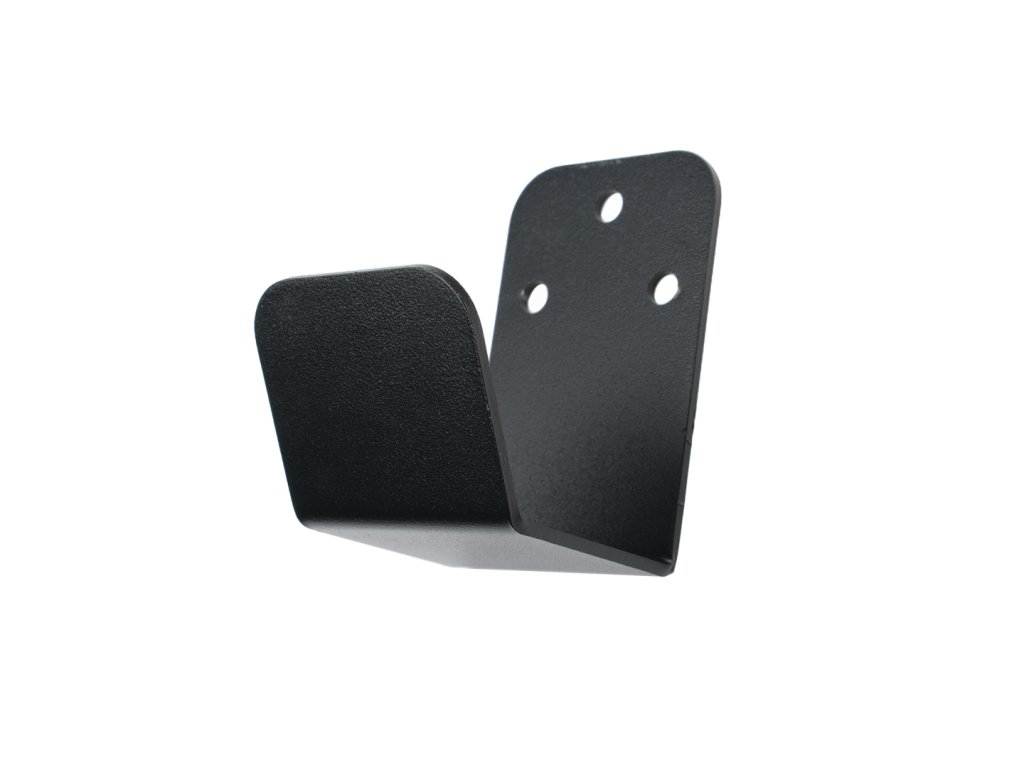

1x Hook
