Wall Charger Pingalax J5-22kW

Product detailed description

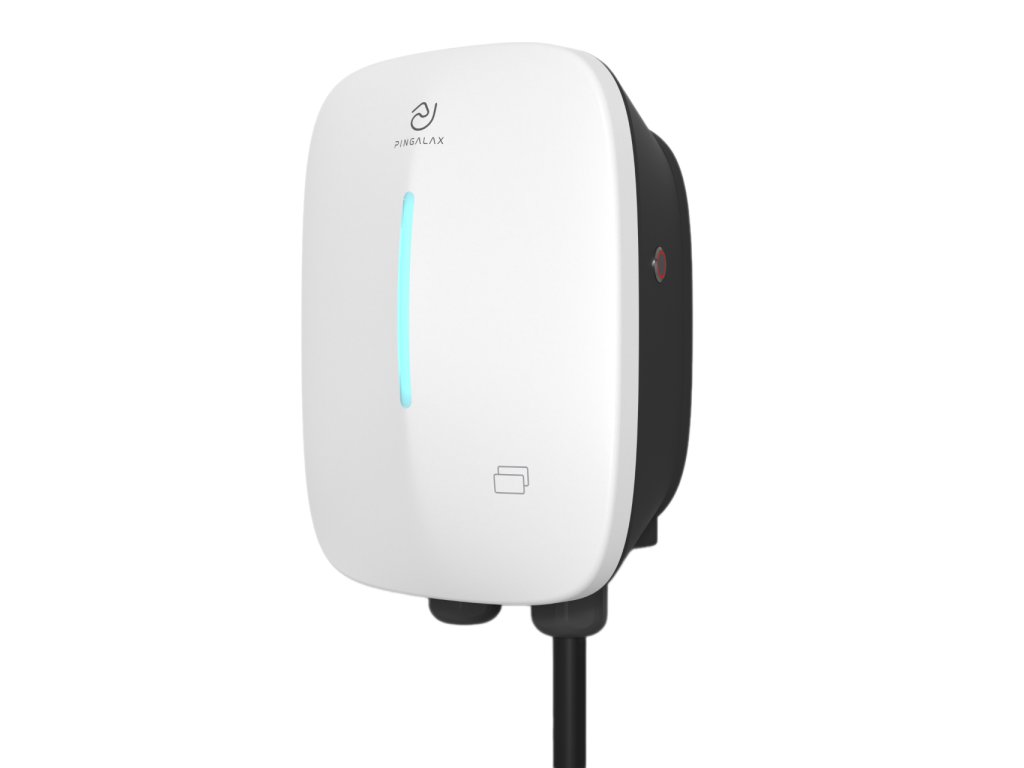

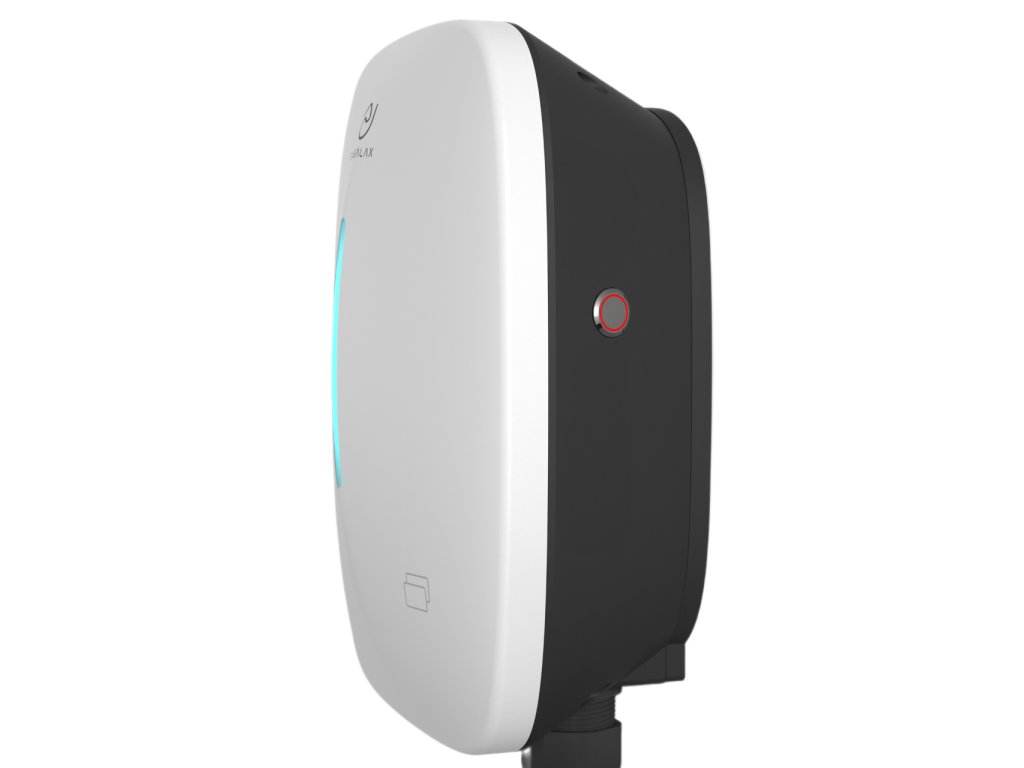

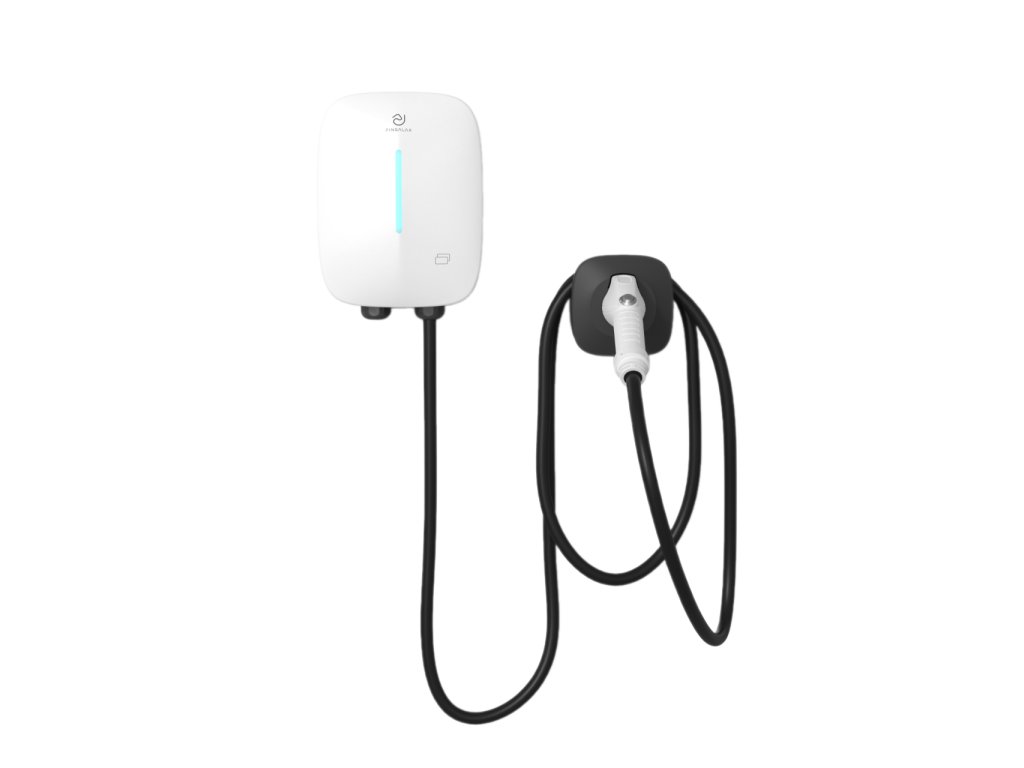

Wall Charger Pingalax J5-22kW

The Pingalax J5 Wall Charger is designed to deliver optimal charging for your electric vehicle. With a powerful 22kW output, this charger minimizes downtime, ensuring your EV is always ready for your next journey. Its sleek, modern design and easy installation make it a perfect fit for any home or business setting. Equipped with state-of-the-art safety features, the Pingalax J5 guarantees a reliable and safe charging experience. Compatible with a wide range of EV models, it's the ultimate choice for efficient and powerful charging.

Specifications:

Power: 22kW
Output Voltage: 3-phase 400Vac±10%
Max Output Current: 32A
Connector: Type 2
Cable length: 5 meters
Communication protocol: OCPP1.6
Communication: WiFi, Bluetooth, Ethernet, Access
Access Control: APP, RFID
Ingress protection: IP65
Safety Features: Over Current, Over Voltage, Under Voltage, Short Circuit, Over Temperature Protections, Reset Function
RCD: RCD Type B
Surge Protection: 20kA
Power Measurement Accuracy ±1%
RFID: ISO/IEC 14443A/B, Mifare
Safety Compliance: CE, CB
Other Functions: OTA
Operating Temperature: -30℃～50℃
Storage Temperature: -40℃～70℃
Power Cooling: Natural-air-cooled
Working/Storage Humidity: ≤95%
Dimensions: 224mm×128mm×310mm
Net Weight: 3.8kg

Package Includes:
1x EV charger
1x Charging connector and cable (already fixed)
1x Connector holder
1x User manual
1x Factory report
1x Certificate
1x Screw set
