Wall Charger Elvix WBAC 4957 T2 1 cable 11KW 5M RFID

Detailní popis produktu

Wall Charger Elvix WBAC 4957 T2 1 cable 11KW 5M RFID

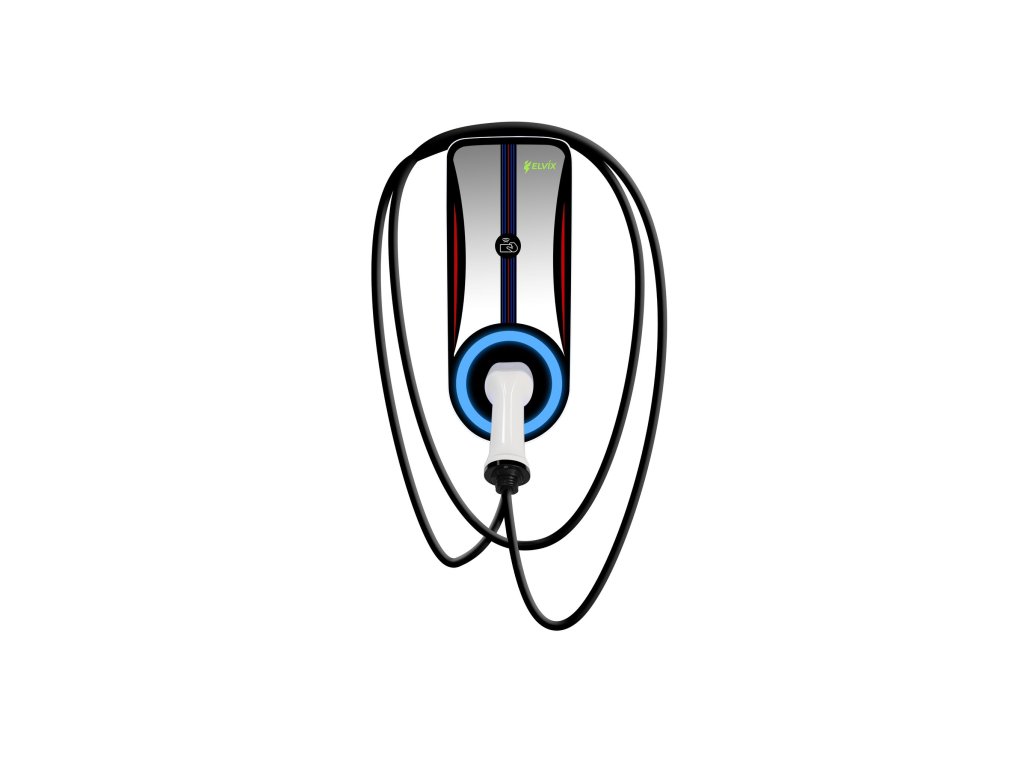

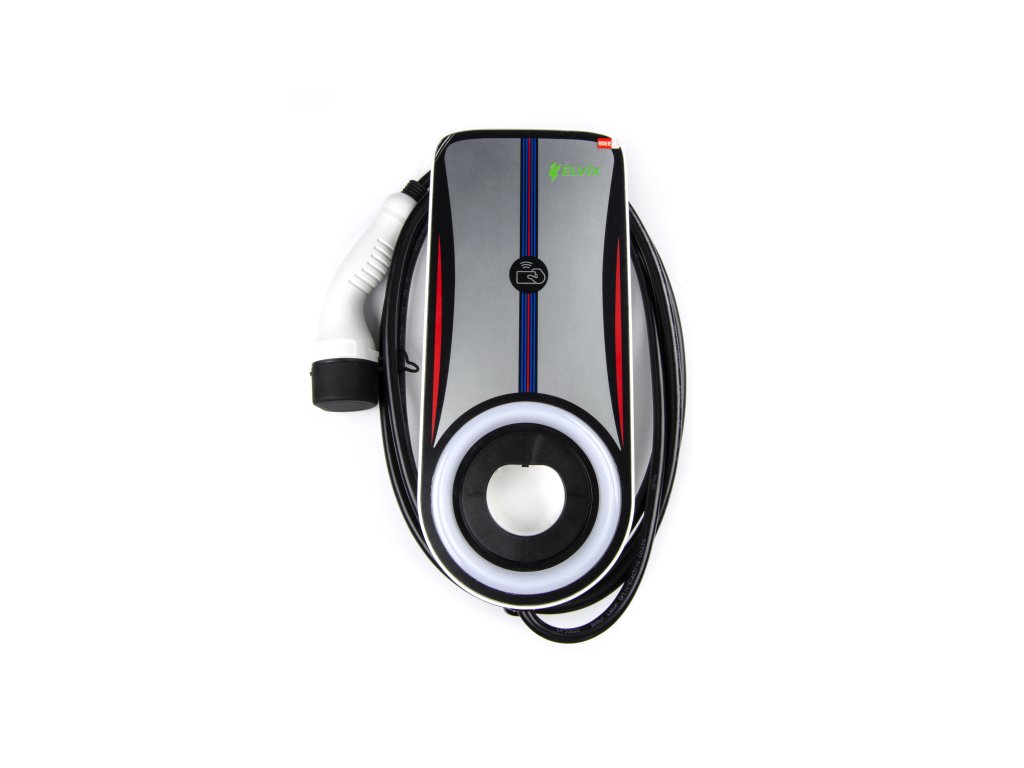

The Elvix WBAC 4957 T2 is a reliable and efficient wall-mounted AC charger with a maximum power output of 11kW. Three-phase power ensures more stable and efficient electricity supply. This allows it to deliver more power, providing faster charging for electric vehicles. Elvix WBAC 4957 T2 features a plug-and-play control mode, making it user-friendly. With an integrated RFID reader for secure access it is ideal for personal use. The charger has multiple safety features, ensuring safe operation in various conditions.

Specifications:

Input Voltage/Current: Three-phase 16A / AC 400V ±20%
Output Voltage/Current: Three-phase 16A / AC 400V ±20%
Maximum Power: 11KW
Cable Length: 5 m
Charging Interface Type: IEC 62196-2, Type 2
Efficiency: ≥96%
Power Factor: >0.99 (Load: 50%-100%)
Protection Level: IP54
Shell Material: PC+ABS, flame retardant and fireproof, UL-94 VO
Control Mode: Plug and play
Payment Method: Credit card
Installation Mode: Wall-mounted
Cooling Mode: Forced air cooling
Safety Features: Overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, emergency stop protection
Communication Protocol: OCPP1.6J
Ambient Temperature Range: -30 ~ 50℃
Overall Dimension: H179.5 x W145.5 x T421 mm
Weight: Approximately 7-8 kg
Color: White

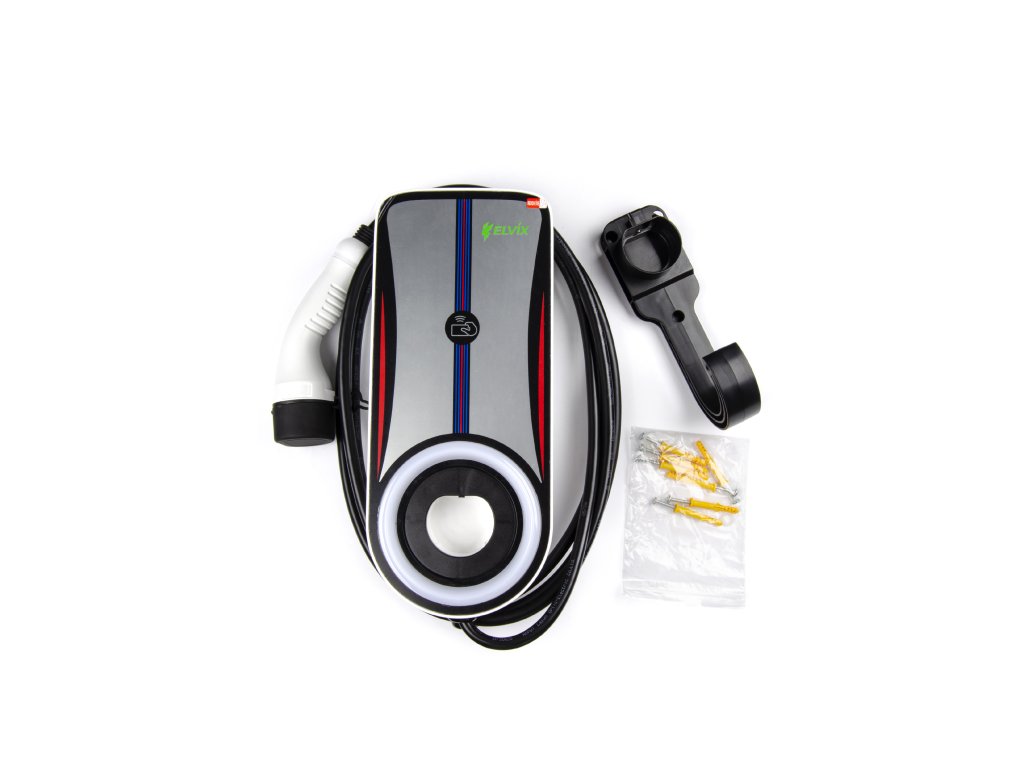

Package Includes:
1x Charger

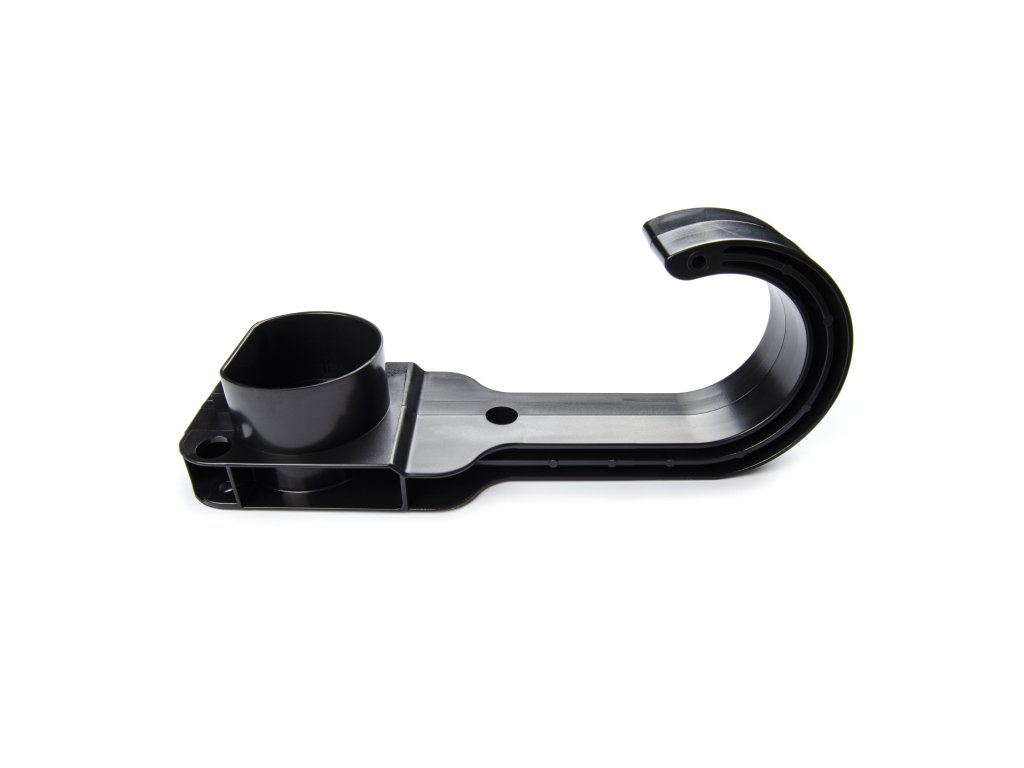

1x Connector holder
2x Cards
1x Manual

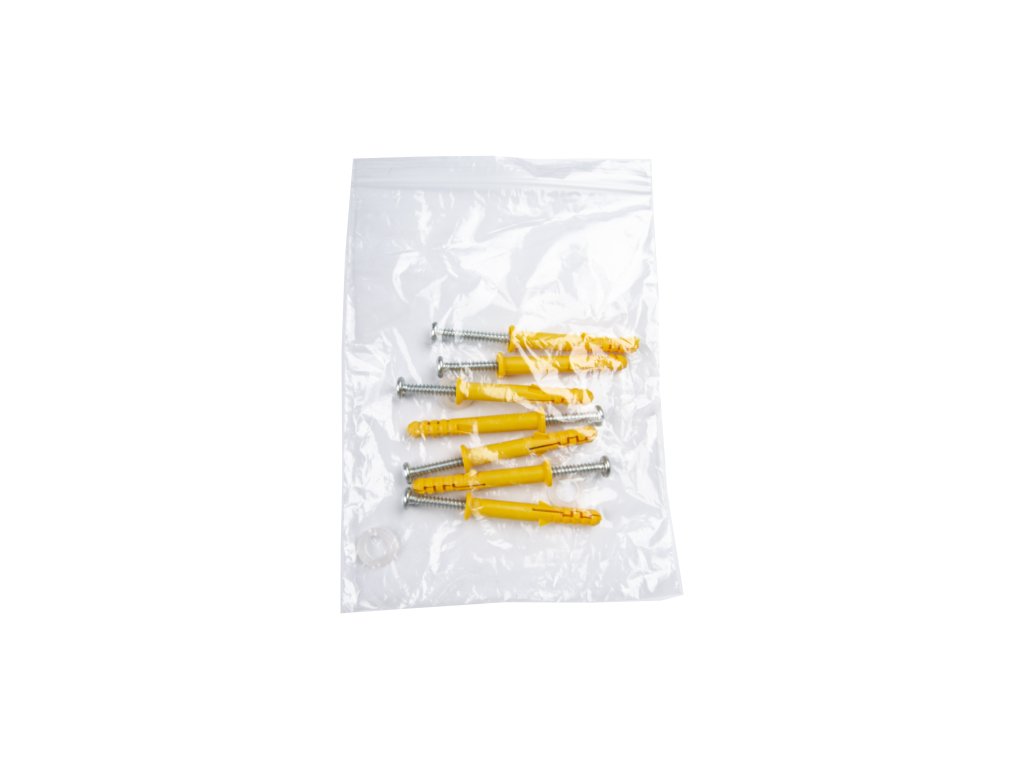

1x Screw set
