Wall Charger Pingalax J4-22kW

Detailní popis produktu

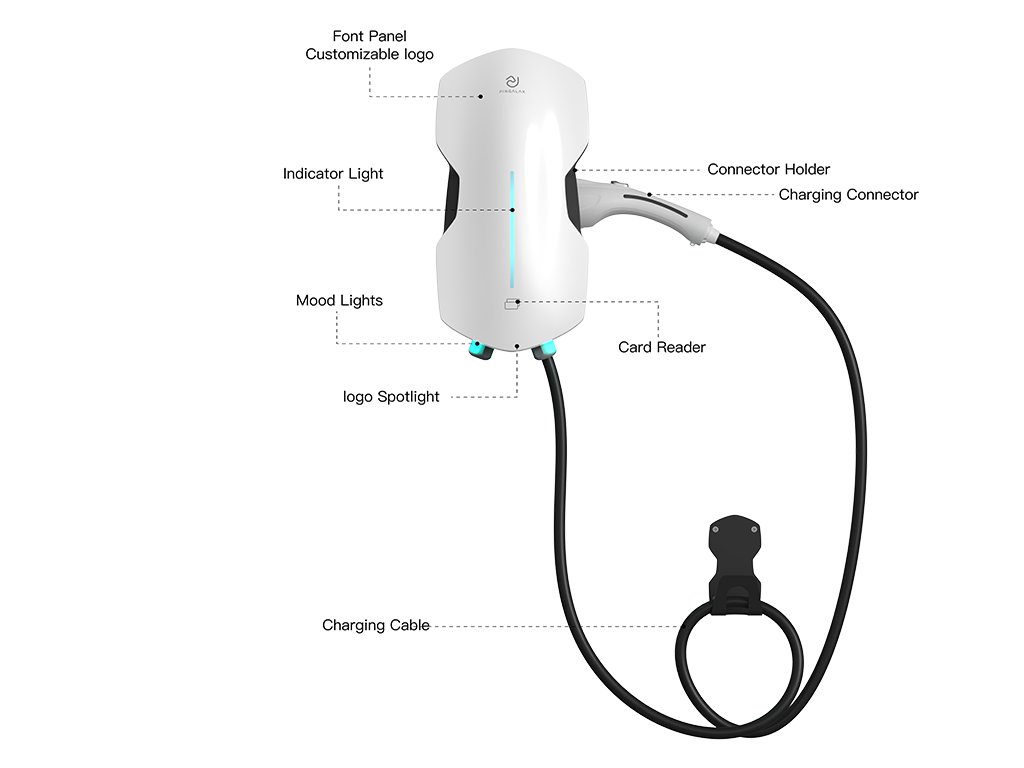

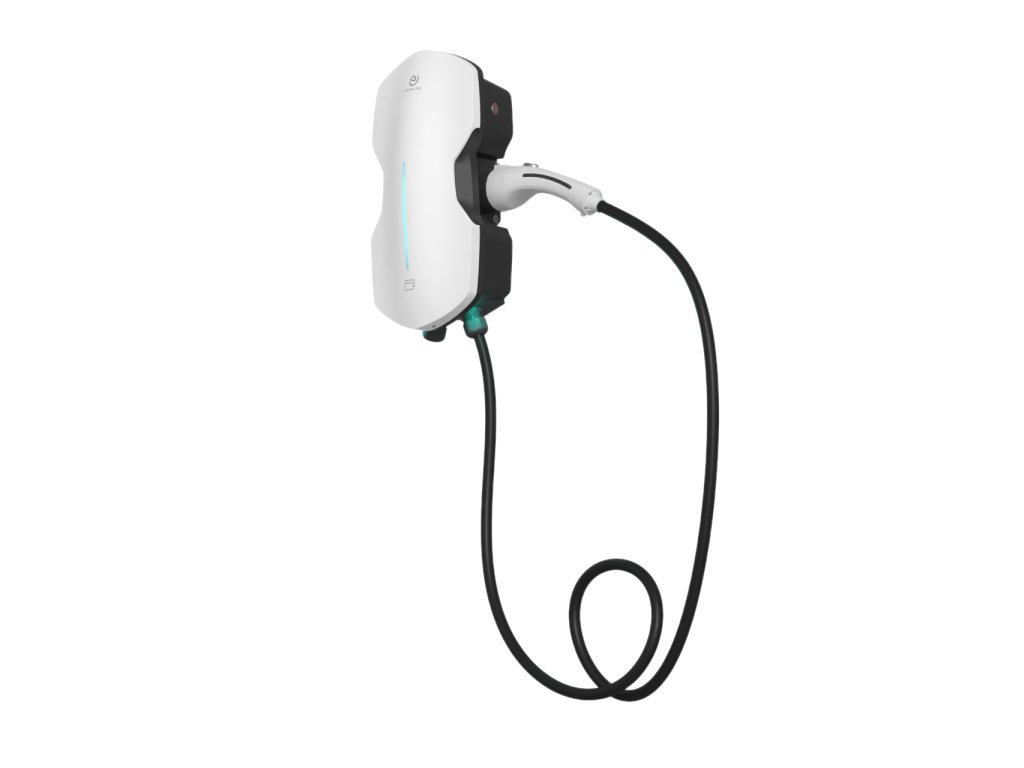

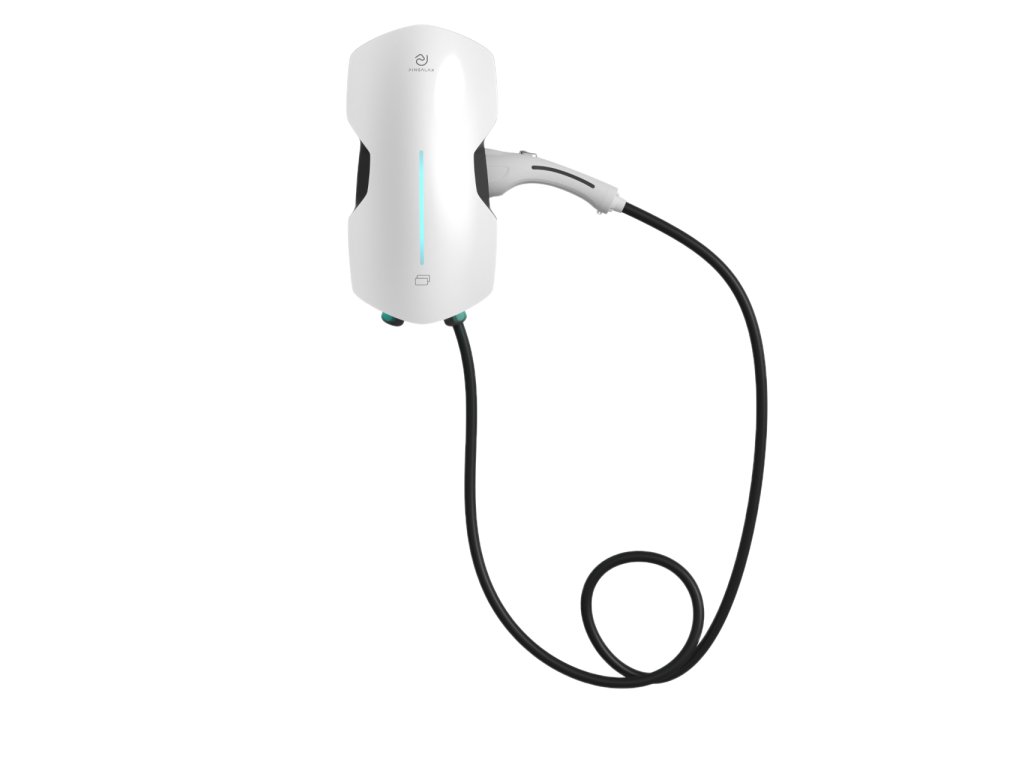

Wall Charger Pingalax J4-22kW

The Pingalax J4-22kW Wall Charger is your ideal solution for fast and reliable electric vehicle charging. With a powerful 11kW output, this charger ensures your EV is always ready to go, cutting down charging time significantly. Its compact design and easy installation make it perfect for home garages or commercial spaces. Built with advanced safety features, the Pingalax J4 provides a secure, efficient charge every time. Compatible with most EV models, this wall charger is your go-to for convenient and eco-friendly charging.

Specifications:

Power: 22kW
Output Voltage: 3-phase 400Vac±10%
Max Output Current: 32A
Connector: Type 2
Cable length: 5 meters
Communication protocol: OCPP1.6
Communication: WiFi, Bluetooth, Ethernet,
Access control: APP, RFID
Ingress protection: IP55
Mounting type: Wall-mounted
Color: White
Dimensions: 208mm×153mm×418mm
Net Weight: ≤5kg
Safety Features: Over Current, Over Voltage, Under Voltage, Short Circuit, Over Temperature Protections, Reset Function
RCD: RCD Type B
Power Measurement Accuracy ±1%
RFID: ISO/IEC 14443A/B, Mifare
Safety Compliance: CE, CB
Other Functions: OTA
Operating Temperature: -30℃～50℃
Storage Temperature: -40℃～70℃
Power Cooling: Natural-air-cooled
Working/Storage Humidity: ≤95%
Dimensions: 208mm×153mm×418mm
Net Weight: ≤5kg

Package Includes:
1x EV charger
1x Charging connector and cable (already fixed)
1x Hanger
1x User manual
1x Factory report
1x Certificate
1x Screw set
